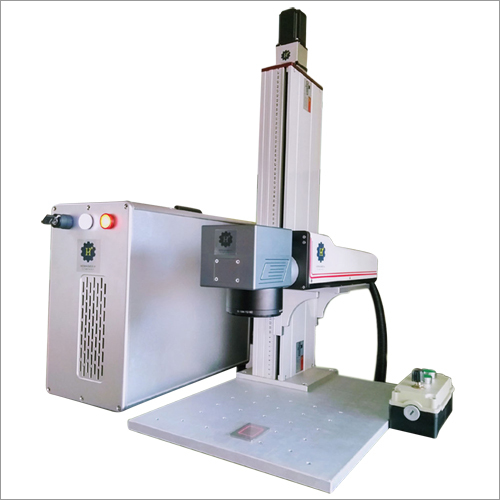

Hercle Fiber Laser Marking Machine

Hercle Fiber Laser Marking Machine
Hercle Fiber Laser Marking Machine
Send Inquiry
Product Code : 33
Product Description

Technical Specification

Laser Type

Fiber

Power

20W (30W, 50W optional)

Wave Length

1064nm

Work Area (mm)

110x110 / 175X175, 210x210 (Customized)

Work Precision

±0.01mm

Max Marking Speed

8,000 mm/s

Pulse Repetition Range

20KHz - 200KHz (Adjustable)

Power Adjustment Range

1% - 100% (Adjustable)

Peak Power

1 mJ

Pulse Duration

90 ~120ns

Supportable Graphical Format

DXF, PLT, DST, AI, BMP, JPG

Supportable Data AcquisitionFormat

XLS, TXT

Cooling Way

AIR COOLED

Power Consumption

≤ 700W

Min Line Width

0.017mm

Min Character

0.2mm X 0.2mm

Laser Module Life

1,00,000 Hours

Power Requirement

AC230V / 50HZ / 5A

Marking Depth

0.01-1.0mm(Subject to material)
